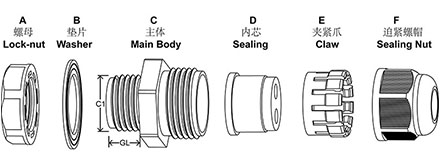

分解圖
技術參數

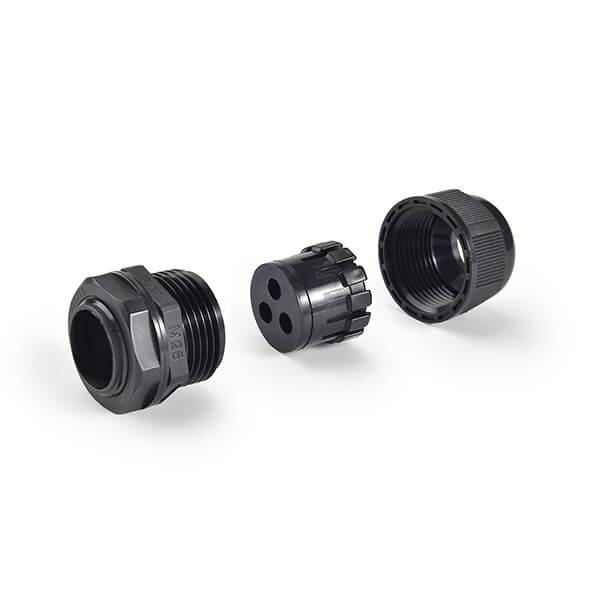

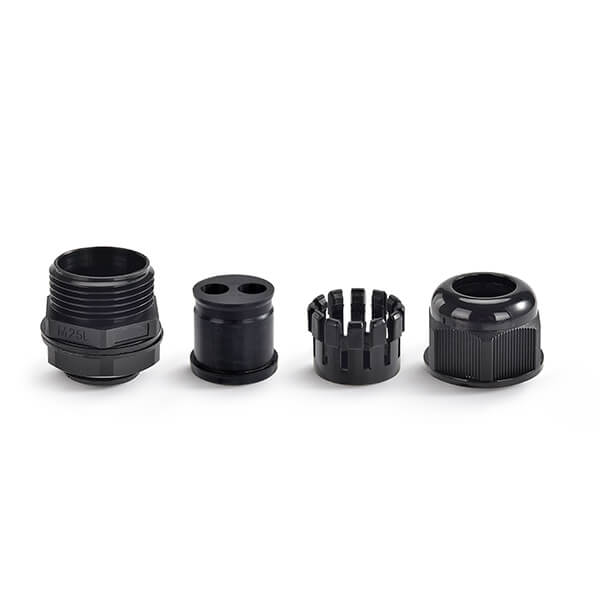

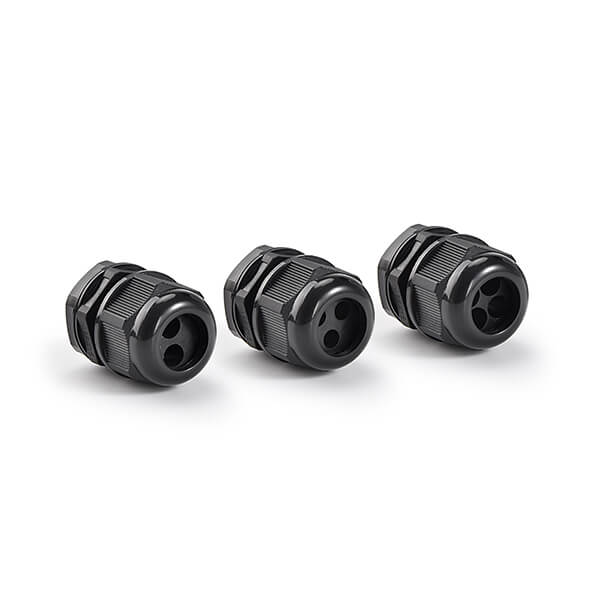

尼龍多孔電纜防水接頭（分體）
公制牙（Metric）/德制牙（PG）/英制牙（G)/美制牙（NPT) |

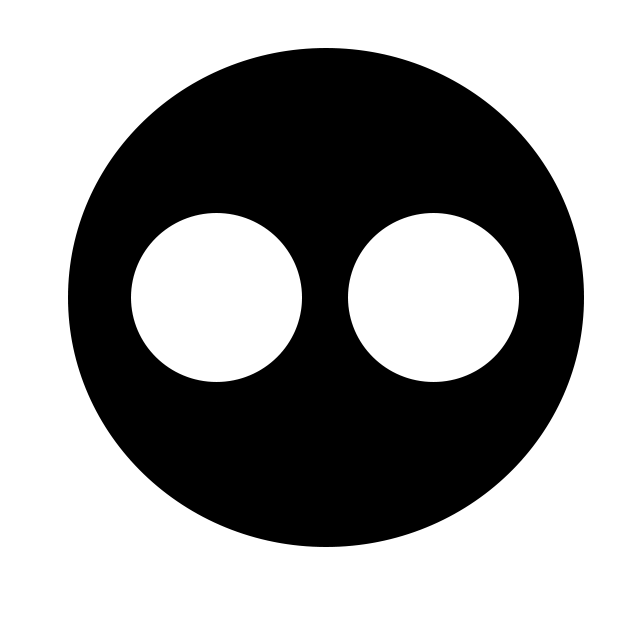

| 多孔規格 | 規格 | 電纜范圍 | 螺紋外徑 | 螺紋長度 | 扳手徑 | 包裝 |
| MGA12-H2-03 | 1.2-3 | 12 | 8 | 18/19 | 50 |
| MGA16-H2-04 | 1.5-4 | 16 | 15 | 22/22 | 50 |
| MGA20-H2-06 | 3-6 | 20 | 15 | 27/27 | 50 |
| MGA25-H2-6.5 | 3-6.5 | 25 | 15 | 33/33 | 50 |
| MGA25-H2-08 | 4-8 | 25 | 15 | 33/33 | 50 |
| MGA25-H2-09 | 5-9 | 25 | 15 | 33/33 | 50 |
| MGA32-H2-10 | 6-10 | 32 | 15 | 41/41 | 20 |
| MGA32-H2-11.5 | 7.5-11.5 | 32 | 15 | 41/41 | 20 |
| MGA40-H2-13 | 7-13 | 40 | 20 | 50/50 | 10 |
| MGA63-H2-17 | 12-17 | 63 | 25 | 75/75 | 10 |
| PGA7-H2-03 | 1.2-3 | 12.5 | 8.5 | 17/19 | 50 |
| PGA9-H2-03 | 1.2-3 | 15.2 | 8.5 | 22/19 | 50 |
| PGA11-H2-04 | 1.5-4 | 18.6 | 10 | 24/22 | 50 |
| PG13.5-H2-05 | 2.5-5 | 20.4 | 10 | 27/24 | 50 |
| PGA16-H2-06 | 3-6 | 22.5 | 10.8 | 30/27 | 50 |
| PGA21-H2-6.5 | 3-6.5 | 28.3 | 12 | 36/33 | 50 |
| PGA21-H2-08 | 4-8 | 28.3 | 12 | 36/33 | 50 |
| PGA21-H2-08 | 5-9 | 28.3 | 12 | 36/33 | 50 |
| PGA29-H2-10 | 6-10 | 37 | 12 | 46/41 | 20 |
| PGA29-H2-11.5 | 7.5-11.5 | 37 | 12 | 46/41 | 20 |
| PGA36-H2-13 | 7-13 | 47 | 14 | 57/52 | 10 |
| PGA48-H2-17 | 12-17 | 59.3 | 18.2 | 70/75 | 10 |

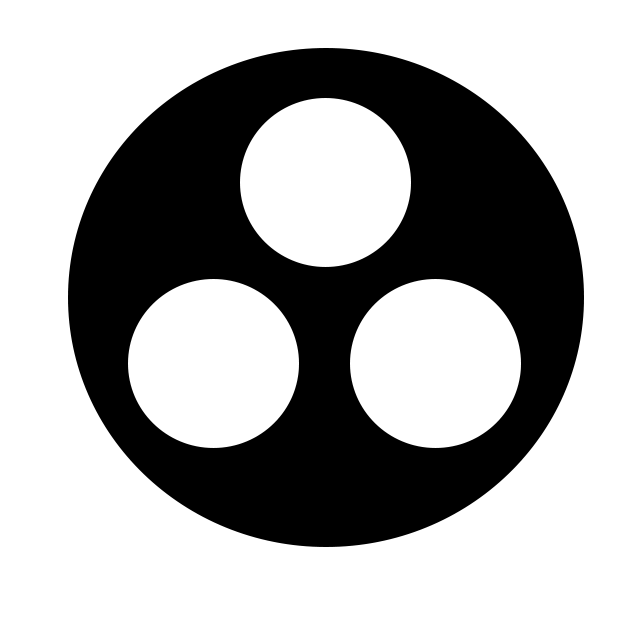

| 多孔規格 | 規格 | 電纜范圍 | 螺紋外徑 | 螺紋長度 | 扳手徑 | 包裝 |
| MGA12-H3-2.6 | 1-2.6 | 12 | 8.5 | 18/19 | 50 |
| MGA16-H3-04 | 1.5-4 | 16 | 15 | 22/22 | 50 |
| MGA20S-H3-05 | 2-5 | 20 | 10 | 24/24 | 50 |
| MGA20-H3-05 | 2-5 | 20 | 15 | 27/27 | 50 |
| MGA22-H3-05 | 2-5 | 22 | 10 | 27/27 | 50 |
| MGA25-H3-05 | 2-5 | 25 | 15 | 33/33 | 50 |
| MGA25-H3-08 | 4-8 | 25 | 15 | 33/33 | 50 |
| MGA32-H3-10 | 6-10 | 32 | 15 | 41/42 | 20 |
| MGA40-H3-11 | 7-11 | 40 | 20 | 50/52 | 10 |
| MGA50-H3-12 | 7-12 | 50 | 22 | 62/62 | 10 |
| MGA63-H3-13 | 8-13 | 63 | 25 | 75/75 | 10 |
| PGA7-H3-2.6 | 1-2.6 | 12.5 | 8.5 | 17/19 | 50 |
| PGA9-H3-2.6 | 1-2.6 | 15.2 | 8.5 | 22/19 | 50 |
| PGA11-H3-04 | 1.5-4 | 18.6 | 10 | 24/22 | 50 |
| PGA13.5-H3-05 | 2-5 | 20.4 | 10 | 27/24 | 50 |
| PGA16-H3-05 | 2-5 | 22.5 | 10.8 | 30/27 | 50 |
| PGA21-H3-05 | 2-5 | 28.3 | 12 | 36/33 | 50 |
| PGA21-H3-08 | 4-8 | 28.3 | 12 | 36/33 | 50 |
| PGA29-H3-10 | 6-10 | 37 | 12 | 46/41 | 20 |
| PGA36-H3-11 | 7-11 | 47 | 14 | 57/52 | 10 |
| PGA42-H3-12 | 7-12 | 54 | 15 | 64/62 | 10 |
| PGA48-H3-13 | 8-13 | 59.3 | 18 | 70/65 | 10 |
| 多孔規格 | 規格 | 電纜范圍 | 螺紋外徑 | 螺紋長度 | 扳手徑 | 包裝 |
| MGA12-H4-2.3 | 1-2.3 | 12 | 8.5 | 18/19 | 50 |
| MGA16-H4-3.2 | 1-3.2 | 16 | 15 | 22/22 | 50 |
| MGA20S-H4-04 | 1.5-4 | 20 | 10 | 24/24 | 50 |
| MGA20-H4-2.5 | 1-2.5 | 20 | 15 | 27/27 | 50 |
| MGA20-H4-3.5 | 1-3.5 | 20 | 15 | 27/27 | 50 |
| MGA20-H4-4.5 | 2-4.5 | 20 | 15 | 27/27 | 50 |
| MGA22-H4-2.5 | 1-2.5 | 22 | 15 | 27/27 | 50 |
| MGA22-H4-3.5 | 1-3.5 | 22 | 15 | 27/27 | 50 |
| MGA22-H4-4.5 | 2-4.5 | 22 | 15 | 27/27 | 50 |
| MGA25-H4-05 | 2-5 | 25 | 15 | 33/33 | 50 |
| MGA25-H4-06 | 3-6 | 25 | 15 | 33/33 | 50 |
| MGA25-H4-07 | 3-7 | 25 | 15 | 33/33 | 50 |
| MGA25-H4-08 | 4-8 | 25 | 15 | 33/33 | 50 |
| MGA25-H4-09 | 5-9 | 25 | 15 | 33/33 | 50 |
| MGA32-H4-07 | 3-7 | 32 | 15 | 41/42 | 20 |
| MGA32-H4-09 | 5-9 | 32 | 15 | 41/42 | 20 |
| MGA40-H4-11 | 7-11 | 40 | 20 | 50/52 | 10 |
| MGA40-H4-12 | 8-12 | 40 | 20 | 50/52 | 10 |
| PGA7-H4-2.3 | 1-2.3 | 12.5 | 8.5 | 17/19 | 50 |
| PGA9-H4-2.3 | 1-2.3 | 15.2 | 8.5 | 22/19 | 50 |
| PGA11-H4-3.2 | 1-3.2 | 18.6 | 10 | 24/22 | 50 |
| PGA13.5-H4-04 | 1.5-4 | 20.4 | 10 | 27/24 | 50 |
| PGA16-H4-2.5 | 1-2.5 | 22.5 | 10.8 | 30/27 | 50 |
| PGA16-H4-3.5 | 1-3.5 | 22.5 | 10.8 | 30/27 | 50 |
| PGA16-H4-4.5 | 2-4.5 | 22.5 | 10.8 | 30/27 | 50 |
| PGA21-H4-05 | 2-5 | 28.3 | 12 | 36/33 | 50 |
| PGA21-H4-06 | 3-6 | 28.3 | 12 | 36/33 | 50 |
| PGA21-H4-07 | 3-7 | 28.3 | 12 | 36/33 | 50 |
| PGA21-H4-08 | 4-8 | 28.3 | 12 | 36/33 | 50 |
| PGA21-H4-09 | 5-9 | 28.3 | 12 | 36/33 | 50 |
| PGA29-H4-07 | 3-7 | 37 | 12 | 46/41 | 20 |
| PGA29-H4-09 | 5-9 | 37 | 12 | 46/41 | 20 |
| PGA36-H4-11 | 7-11 | 47 | 14 | 57/52 | 10 |
| PGA36-H4-12 | 8-12 | 47 | 14 | 57/52 | 10 |
| 多孔規格 | 規格 | 電纜范圍 | 螺紋外徑 | 螺紋長度 | 扳手徑 | 包裝 |

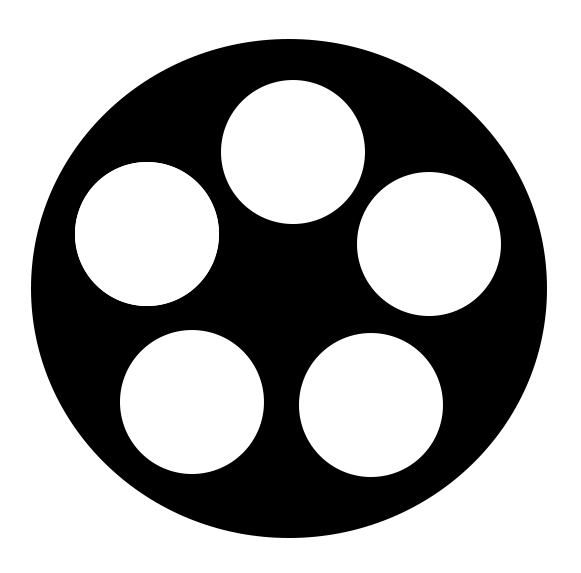

| MGA20-H5-03 | 1-3 | 20 | 15 | 27/27 | 50 |
| MGA22-H5-03 | 1-3 | 22 | 10 | 27/27 | 50 |
| MGA25-H5-06 | 3-6 | 25 | 15 | 33/33 | 50 |
| MGA32-H5-08 | 4-8 | 32 | 15 | 41/42 | 20 |
| PGA16-H5-03 | 1-3 | 22.5 | 11 | 30/27 | 50 |
| PGA21-H5-06 | 3-6 | 28.3 | 12 | 36/33 | 50 |
| PGA29-H5-08 | 4-8 | 37 | 12 | 46/41 | 20 |

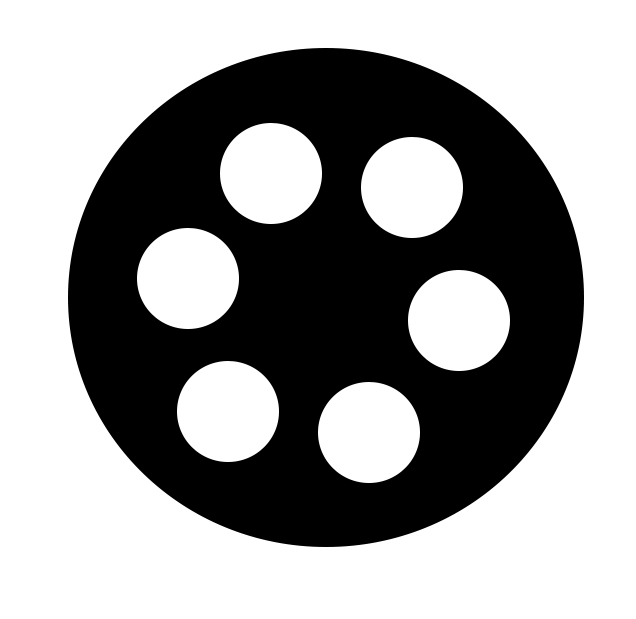

| 多孔規格 | 規格 | 電纜范圍 | 螺紋外徑 | 螺紋長度 | 扳手徑 | 包裝 |
| MGA16A-H6-2.1 | 1-2.1 | 16 | 15 | 22/22 | 50 |
| MGA25A-H6-5.3 | 2-5.3 | 25 | 15 | 33/33 | 50 |
| MGA32A-H6-5.5 | 2-5.5 | 32 | 15 | 41/42 | 20 |
| MGA32A-H6-07 | 3-7 | 32 | 15 | 41/42 | 20 |
| MGA63A-H6-12 | 8-12 | 63 | 25 | 75/75 | 10 |
| PGA11-H6-2.1 | 1-2.1 | 18.6 | 10 | 24/22 | 50 |
| PGA21-H6-5.3 | 2-5.3 | 28.3 | 12 | 36/33 | 50 |
| PGA29-H6-5.5 | 2-5.5 | 37 | 12 | 46/41 | 20 |
| PGA29-H6-07 | 3-7 | 37 | 12 | 46/41 | 20 |
| PGA48-H6-12 | 8-12 | 59.3 | 18 | 70/65 | 10 |
| 多孔規格 | 規格 | 電纜范圍 | 螺紋外徑 | 螺紋長度 | 扳手徑 | 包裝 |
| MGA25-H7-4.3 | 2-4.3 | 25 | 15 | 33/33 | 50 |
| PGA21-H7-4.3 | 2-4.3 | 28.3 | 12 | 36/33 | 50 |
| 多孔規格 | 規格 | 電纜范圍 | 螺紋外徑 | 螺紋長度 | 扳手徑 | 包裝 |
| MGA25-H8-04 | 1.5-4 | 25 | 15 | 33/33 | 50 |
| PGA21-H8-04 | 1.5-4 | 28.3 | 12 | 36/33 | 50 |

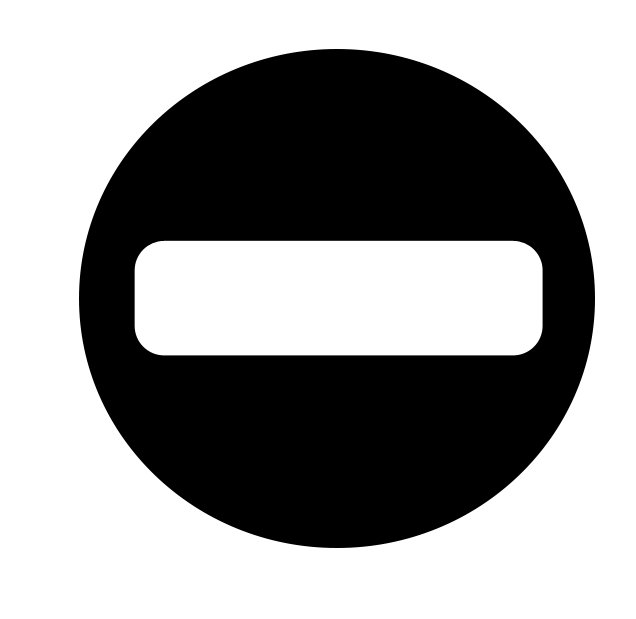

| 多孔規格 | 規格 | 電纜范圍 | 螺紋外徑 | 螺紋長度 | 扳手徑 | 包裝 |

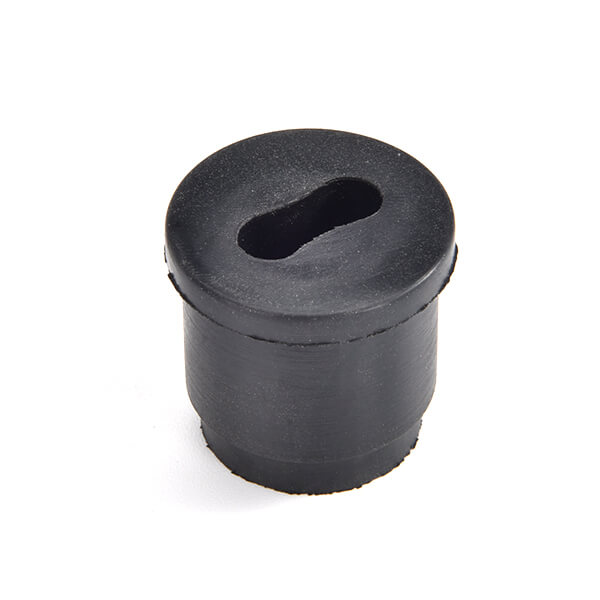

| MGA10-0306 | 03*06 | 10 | 8 | 15/13 | 50 |
| MGA25-0614 | 06*14 | 25 | 15 | 33/33 | 50 |
| MGA32-0519 | 05*19 | 32 | 15 | 41/42 | 20 |
如何正確選擇螺牙類型？
1.首先確定安裝面板的孔徑，并確定其是否屬于攻牙孔。
2.對照技術參數表找到匹配的螺牙型號（如：M、PG、NPT、G螺牙）。
3.如果安裝面板沒有攻牙孔，那么只需要確定孔徑即可。
4.加長款螺紋適用于厚的安裝面板。
常見問題
1.問：有UL認證嗎？
答:我們有成品UL認證的，也有原材料UL(尼龍PA66制成防火等級UL94V-2)。您可以根據需求選擇需要的那款。
2.問：使用壽命是多久？
答：常規環境下10年以上。
3.問：交貨期多久？
答：常規型號基本有庫存，可以隨時發貨，量大基本3-7個工作日可發貨。
4.問：可以定制接頭和包裝嗎？
答：可以。
